From Backyard Stargazing to Photonics: The Physics of Smart Telescopes

What began as a freezing backyard hobby during the crystal-clear, sub-zero winter nights of 2025 quickly evolved into the real-world case study for my photonics and semiconductor lectures.

Capturing deep-sky objects like galaxies and nebulae traditionally requires heavy equatorial mounts and specialized cooled cameras. However, the images below were captured using a highly portable “Smart Telescope.” This technology relies less on heavy optics and more on computational physics—making it a fantastic pedagogical tool to demonstrate core concepts of signal processing and semiconductor physics.

🔭 The Working Principle: Short Exposures & Massive Stacking

Instead of using an equatorial mount that perfectly counters the Earth’s rotation, a smart telescope typically uses a simpler Alt-Azimuth mount. If it were to take a single 10-minute exposure, the stars would trail into arcs due to field rotation.

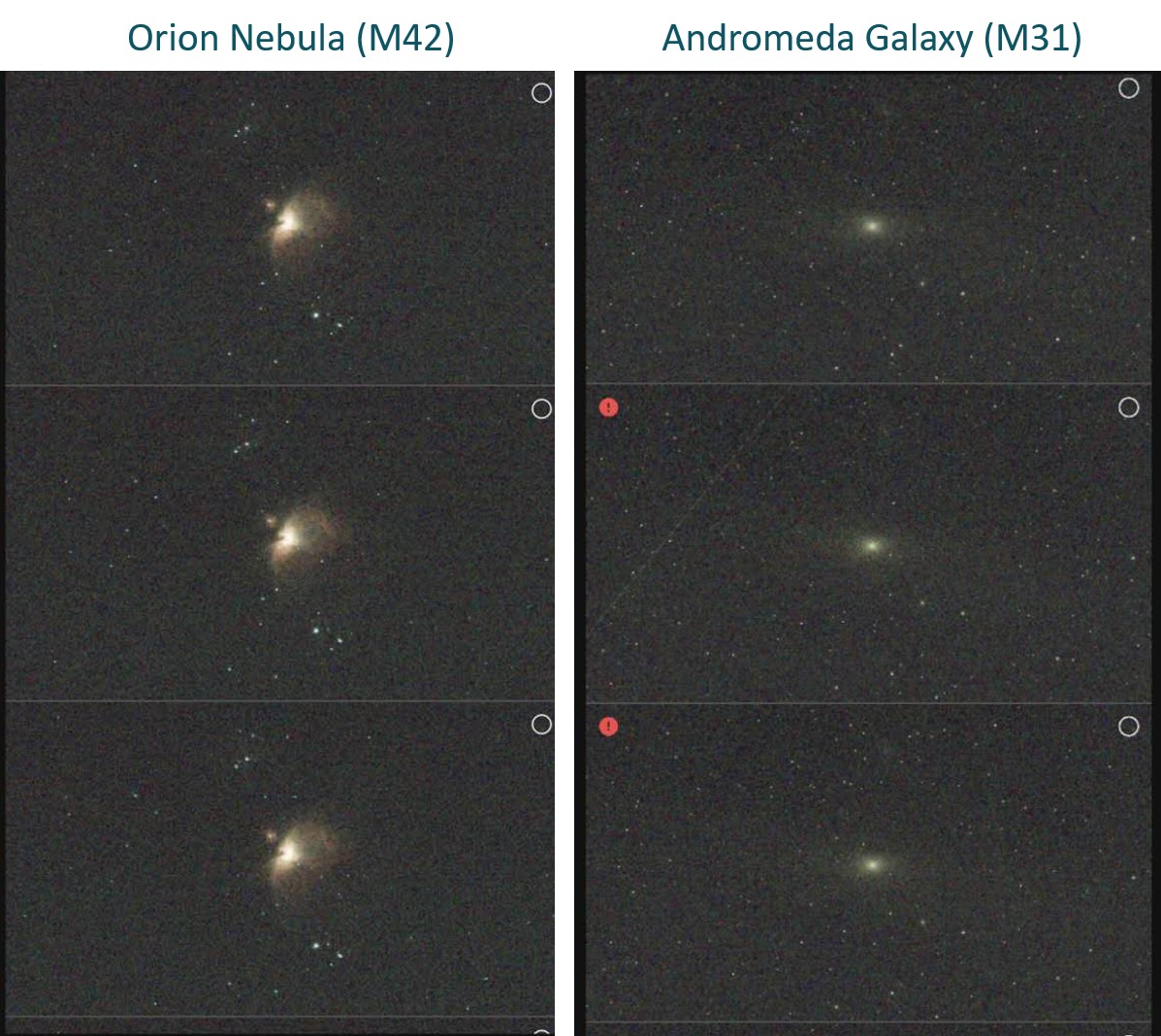

To bypass this, the telescope continuously captures hundreds of short exposures—roughly 15 seconds each. Onboard software then dynamically aligns, rotates, and stacks these short frames into a single master image. This method fundamentally changes the imaging challenge from an optical tracking problem to a mathematical signal processing problem.

📈 The Math of Averaging: $SNR \propto \sqrt{N}$

The deep sky is incredibly faint, meaning the true light signal is easily overwhelmed by the camera’s inherent electronic noise. By stacking hundreds of 15-second exposures, we leverage a fundamental statistical law: the Signal-to-Noise Ratio (SNR) increases proportionally to the square root of the number of frames ($N$).

Because the true astronomical signal is constant across all frames, it adds up linearly. The electronic noise, however, is random; it fluctuates and cancels itself out over time.

A Familiar Concept in Biomedical Optics: > If this averaging principle sounds familiar, it is the exact same mathematical foundation we use in Optical Coherence Tomography (OCT). In OCT, we frequently average multiple B-scans of the same tissue location to suppress random speckle noise and reveal the underlying structural signal.

❄️ Semiconductors in the Cold: Beating Dark Current

There is a very specific physical reason these images were captured in the dead of winter when the temperature was below 0°C.

The CMOS sensor inside the telescope operates based on PN junctions (photodiodes) operating in reverse bias. Ideally, only incoming photons generate electron-hole pairs to create a signal. However, due to thermal energy ($kT$), electrons in the semiconductor lattice can spontaneously jump from the valence band to the conduction band without any light present.

This creates a Dark Current—a false signal that mimics real light. Because this thermal excitation is an exponential function of temperature, cooling the sensor is critical. In professional astronomy, cameras use active Peltier cooling. For a passive smart telescope, stepping out into a freezing winter night acts as a natural cryogenic boost, massively suppressing the dark current and yielding exceptionally clean data.

🌌 Deep-Sky Gallery: Winter 2025 Observations

Here is a selection of the celestial targets captured during those cold, clear nights, each requiring hours of accumulated 15-second integrations:
